Product Catalog
Binders, granules, five systems.
Start with the GroundVex binder or granule palette, then tap a system to explore the environments it's engineered for.
Purpose-engineered polyurethane binder systems that hold every GroundVex surface together. From fast-curing base layers to UV-stable aliphatic top coats, each model is specified by chemistry, cure behaviour, and where it sits in the build — not guesswork.
- Model 3401
Aromatic binder
Enhanced UV-stability binder for EPDM surfacing.
Enhanced UV stability- Aromatic polyurethane binder
- One-component, solvent-free formulation
- Enhanced UV stability
- Designed for binding EPDM rubber granules in synthetic sport surfacing
Ideal applications
Synthetic sport surfacing · EPDM rubber surfacing
- Guide cure time
- 15 – 16 hours
- 20 °C / 68 °F · 50% RH
- Recommended mix ratio
- 18 – 20% binder / 80 – 82% rubber (by weight)
- Model 3443
Fast-curing base binder
Fast-curing base binder for synthetic sports surfacing.
Fast curing- One-component, solvent-free straight MDI prepolymer
- Fast curing
- Designed as a base binder — never as a top-layer binder
- Yellowing will occur under UV light (does not affect mechanical properties)
- Ideal for base layer applications in synthetic sports surfacing
Ideal applications
Base layer in synthetic sports surfacing
- Guide cure time
- 6 – 7 hours
- 23 °C / 77 °F · 50% RH
- Recommended mix ratio
- 20% binder / 80% rubber (by weight)
- Model 3480
Aliphatic binder
UV-stable top-layer binder for superior color and durability.
UV stable- One-component, solvent-free straight MDI prepolymer
- UV stable
- Clear / light-amber binder for bright, vibrant colors
- Designed for binding EPDM rubber granules in a top-layer synthetic sports surface
Ideal applications
Top-layer synthetic sports surfaces · EPDM rubber surfacing
- Guide cure time
- 12 – 14 hours
- 20 °C / 68 °F · 50% RH
- Recommended mix ratio
- 16 – 18% binder / 82 – 84% rubber (by weight)
GroundVex binder at a glance
The same eight questions, answered three ways.
Chemistry
- Model 3401
- Aromatic
- Model 3443
- Straight MDI prepolymer
- Model 3480
- Aliphatic
Primary role
- Model 3401
- Synthetic sport surfacing binder
- Model 3443
- Base layer only (not for top layer)
- Model 3480
- Top layer binder
UV stability
- Model 3401
- Enhanced
- Model 3443
- Yellowing will occur under UV exposure (does not affect mechanical properties)
- Model 3480
- UV stable
Color / appearance
- Model 3401
- Opaque / gold to light brown
- Model 3443
- Opaque / gold to light brown
- Model 3480
- Clear / light amber
Cure time (guide)
- Model 3401
- 15 – 16 h (20 °C / 68 °F · 50% RH)
- Model 3443
- 6 – 7 h (23 °C / 77 °F · 50% RH)
- Model 3480
- 12 – 14 h (20 °C / 68 °F · 50% RH)
Application focus
- Model 3401
- Synthetic sport surfacing
- Model 3443
- Base layer in synthetic sports surfacing
- Model 3480
- Top layer in synthetic sports surfacing
Water / chemical exposure
- Model 3401
- —
- Model 3443
- —
- Model 3480
- —
Recommended mix ratio
- Model 3401
- 18 – 20% binder / 80 – 82% rubber (by weight)
- Model 3443
- 20% binder / 80% rubber (by weight)
- Model 3480
- 16 – 18% binder / 82 – 84% rubber (by weight)
Which GroundVex binder is right for your project?
3401 — Enhanced UV-stability aromatic
Choose 3401 when you need a synthetic sport surfacing binder with enhanced UV stability for long-term performance.
3443 — Fast-curing base
Choose 3443 when installation speed and base-layer performance are the priority for synthetic sports surfacing.
3480 — UV-stable aliphatic
Choose 3480 when UV stability and clear / light-amber appearance are critical for top-layer synthetic sports surfaces.
Full binder technologyThe GroundVex difference
- 01
UV stability
Engineered to withstand sun exposure for long-term surface integrity.
- 02
Color retention
Advanced binder technology helps colors stay vibrant longer.
- 03
Application performance
Purpose-engineered for the right role in the system — delivering reliable results where it matters most.
Virgin EPDM granules at 60 Shore A — colour-fast, UV-stable, and batch-consistent across every production run. The widest standard range and highest availability in the market, produced for bonded flooring systems where colour must hold for the life of the surface. Every GroundVex system on this page is poured from this palette.
Request a colour sample- Polymer
- Virgin EPDM
- Hardness
- 60 Shore A
- Standard range
- 24 colours
- Reference
- Code + RAL
Warm neutrals
Beige
Code 46 2100 · RAL 1001
Earth Yellow
Code 46 5700 · RAL 1006
Yellow
Code 46 2000 · RAL 1012
Pearl
Code 46 2900 · RAL 1013
Eggshell
Code 46 2400 · RAL 1015
Orange
Code 66 5700 · RAL 2011
Reds & violets
Red
Code 46 0000 · RAL 3016
Rose
Code 46 7500 · RAL 3017
Purple
Code 46 3400 · RAL 4005
Steel Blue
Code 68 2200 · RAL 5011
Blue Grey
Code 46 1000 · RAL 5014
Sky Blue
Code 46 1800 · RAL 5015
Blues & aquas
Rainbow Blue
Code 46 5900 · RAL 5017
Turquoise Blue
Code 46 5400 · RAL 5018
Capri Blue
Code 46 1500 · RAL 5019
Teal
Code 46 5800 · RAL 5024
Patina Green
Code 46 4000 · RAL 6000
Reseda Green
Code 46 4700 · RAL 6011
Greens, greys & earth
May Green
Code 46 4100 · RAL 6017
Rainbow Green
Code 46 5600 · RAL 6025
Signal Green
Code 46 4600 · RAL 6032
Light Grey
Code 46 3800 · RAL 7035
Charcoal
Code 46 9000 · RAL 7043
Brown
Code 46 2800 · RAL 8024
RAL shade specifications are non-binding approximations, and on-screen colour will vary by display — specify by Code and confirm against a physical sample. For sensitive shades such as greys and blues, an aliphatic binder is recommended to preserve colour under UV exposure.

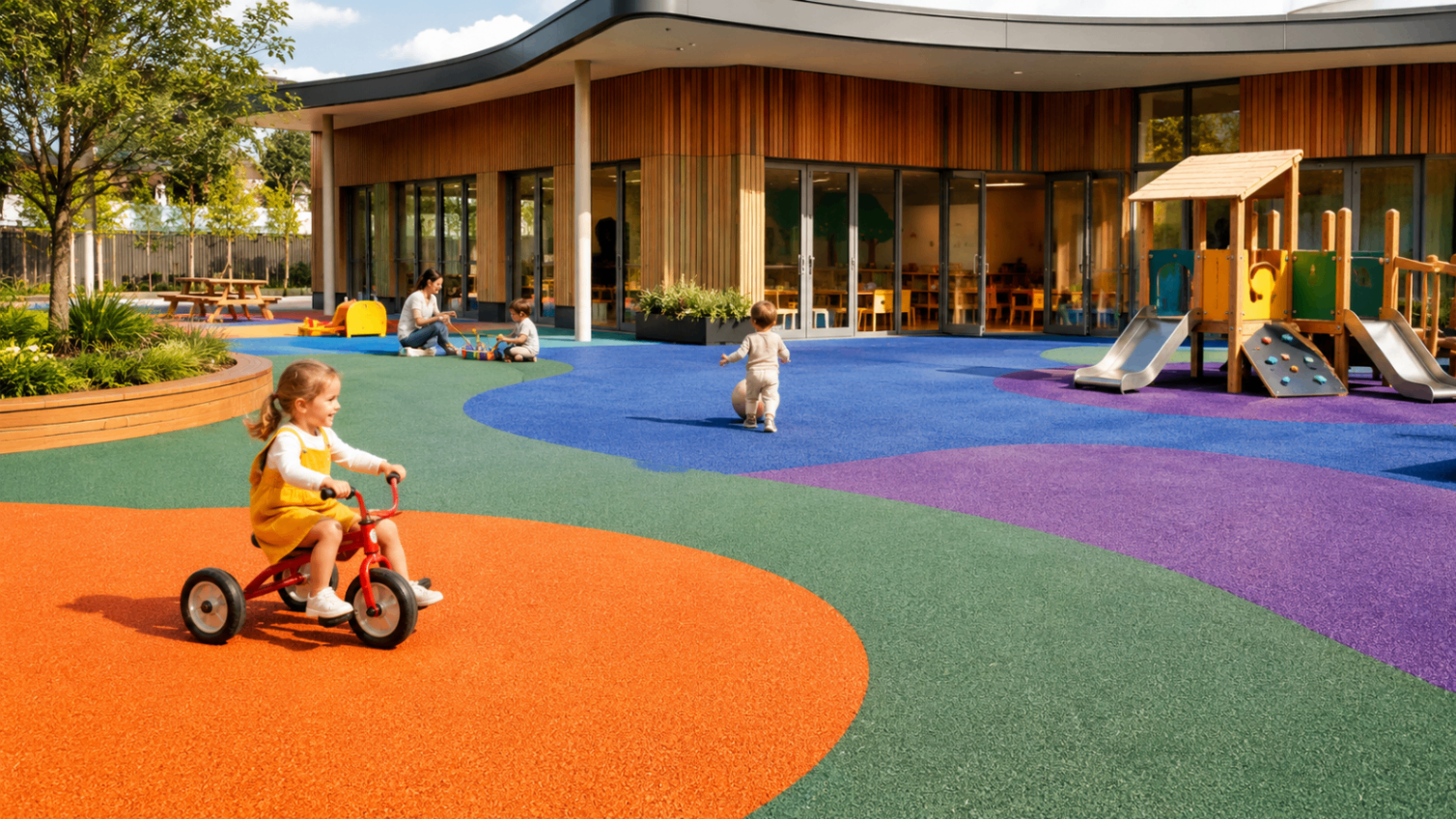

Poured-in-place EPDM systems engineered to critical fall heights, with the color and pattern freedom to make learning spaces come alive.
Spec GroundVex PlayEnvironments

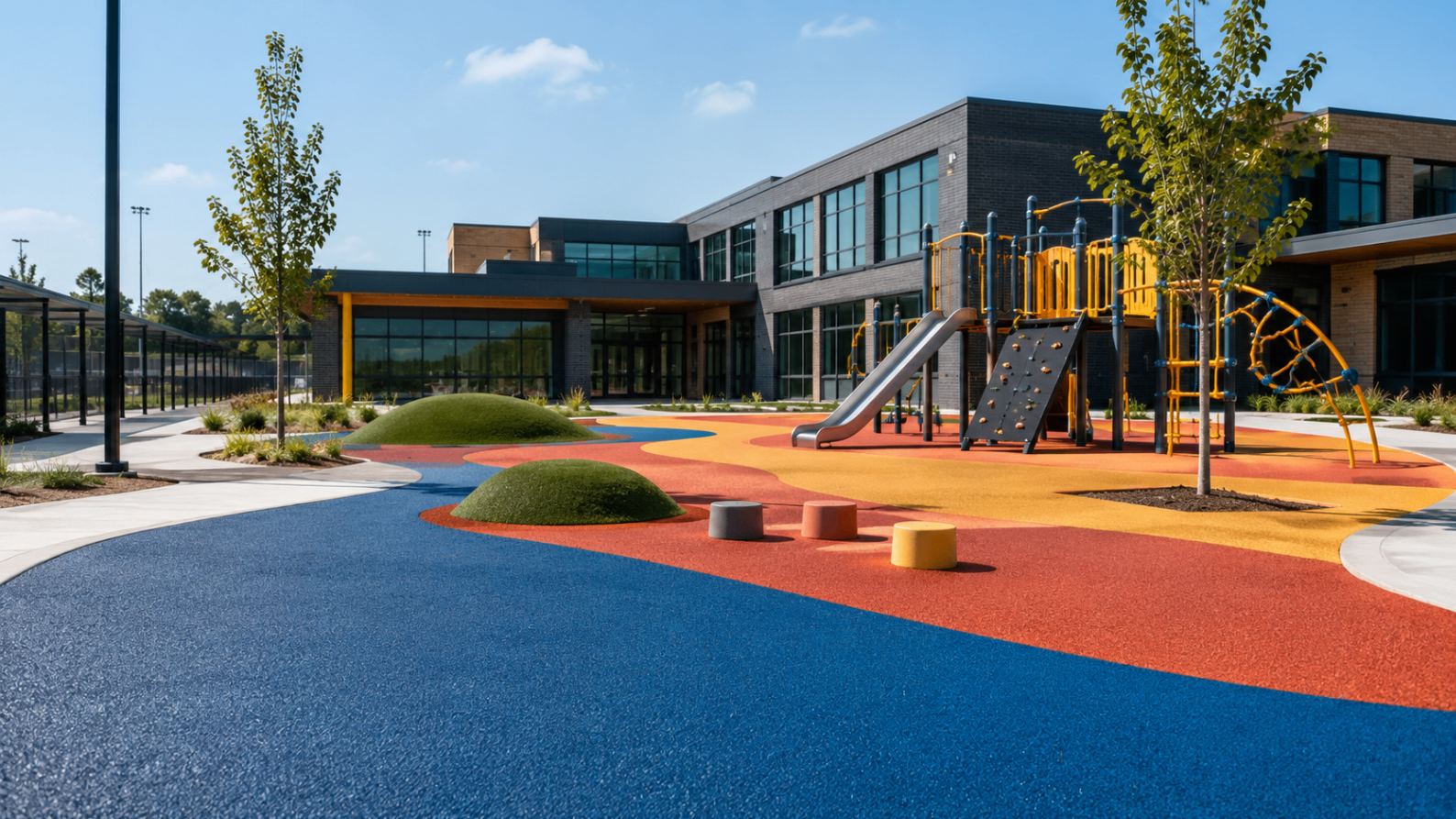

01Schools

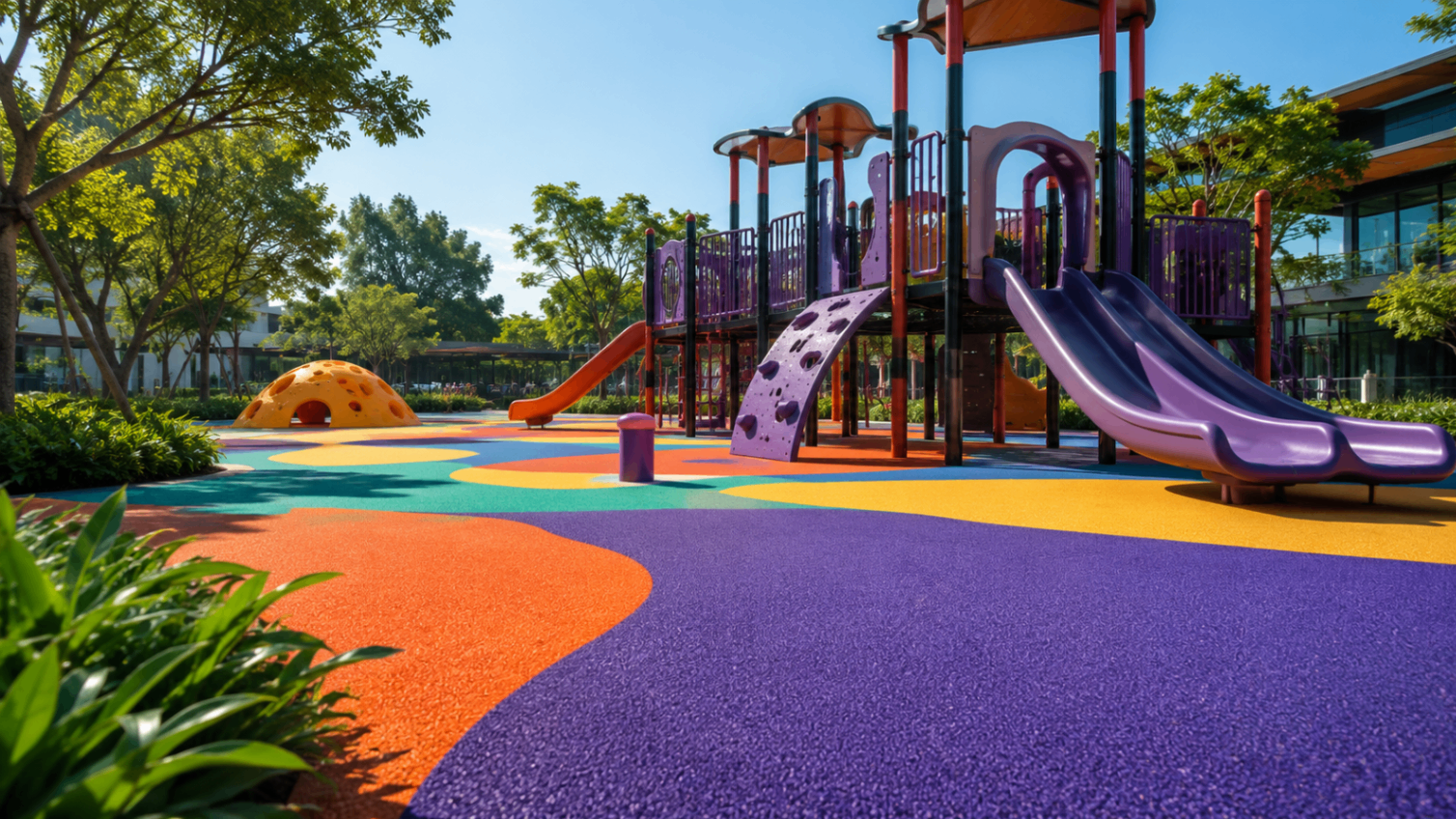

02Playgrounds
03Daycares

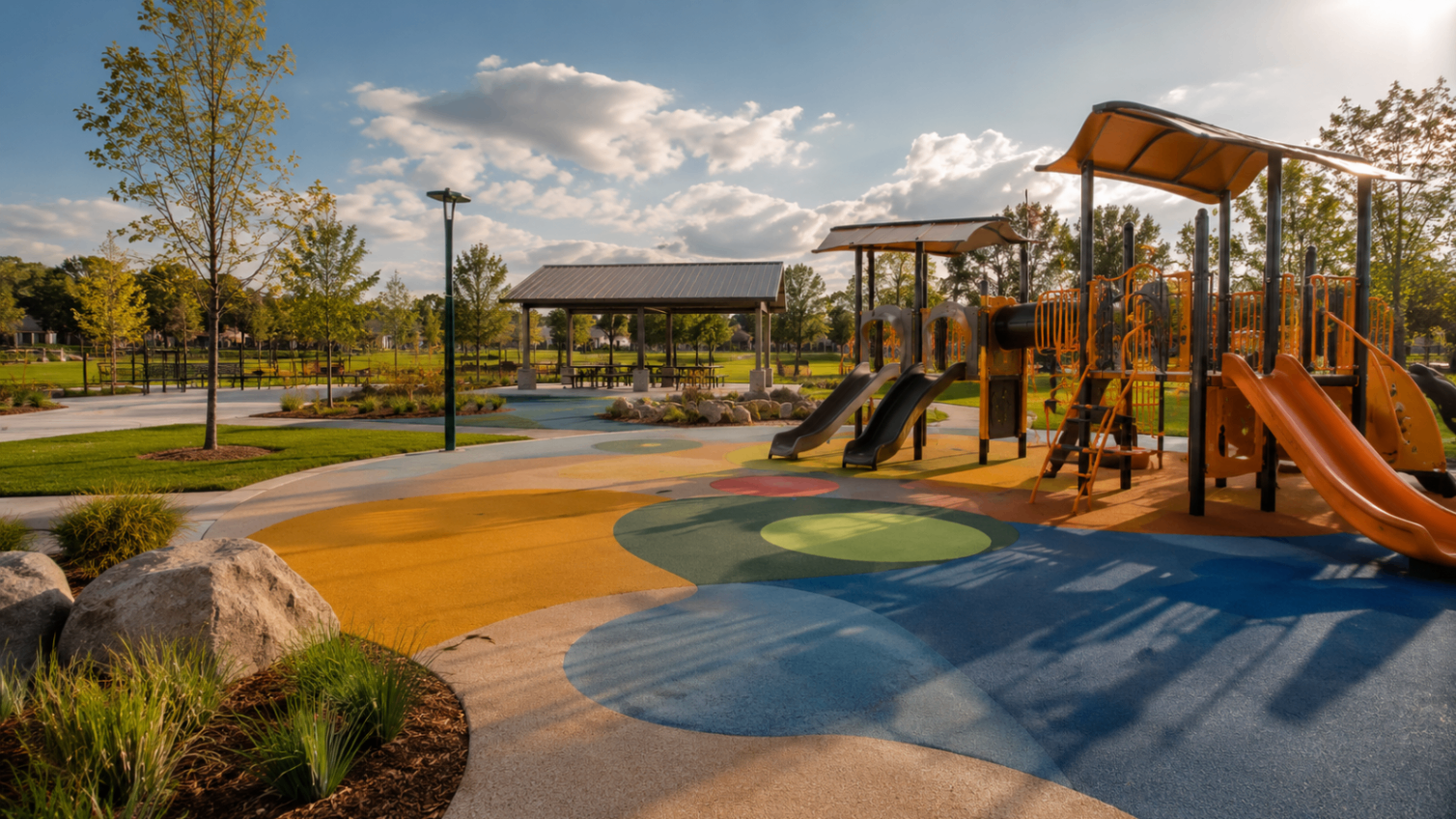

04Municipal Parks
Force-reduction rubber and polyurethane systems tuned for athletes — from dropped iron in the weight room to lane-1 sprints on the track.
Spec GroundVex SportEnvironments

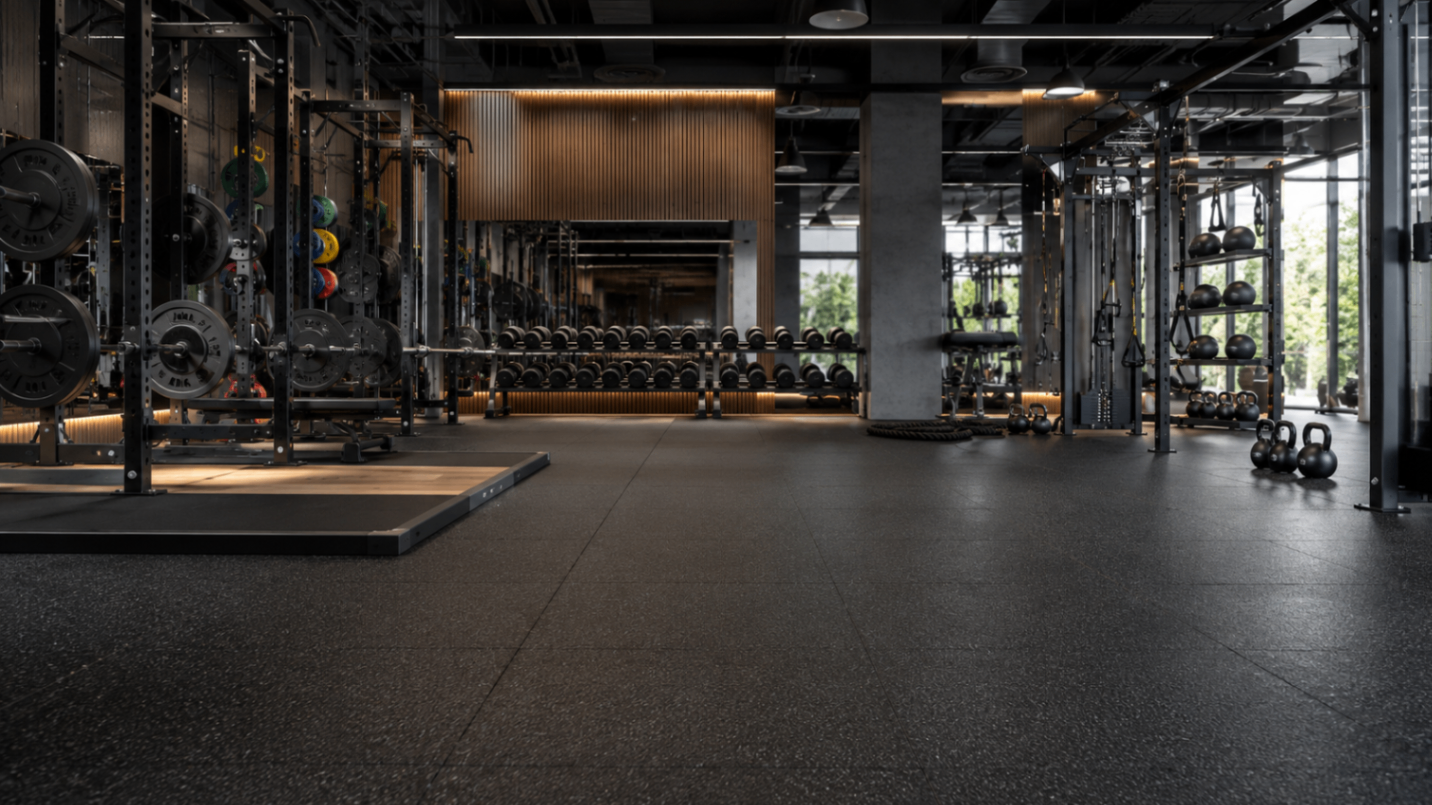

01Gyms

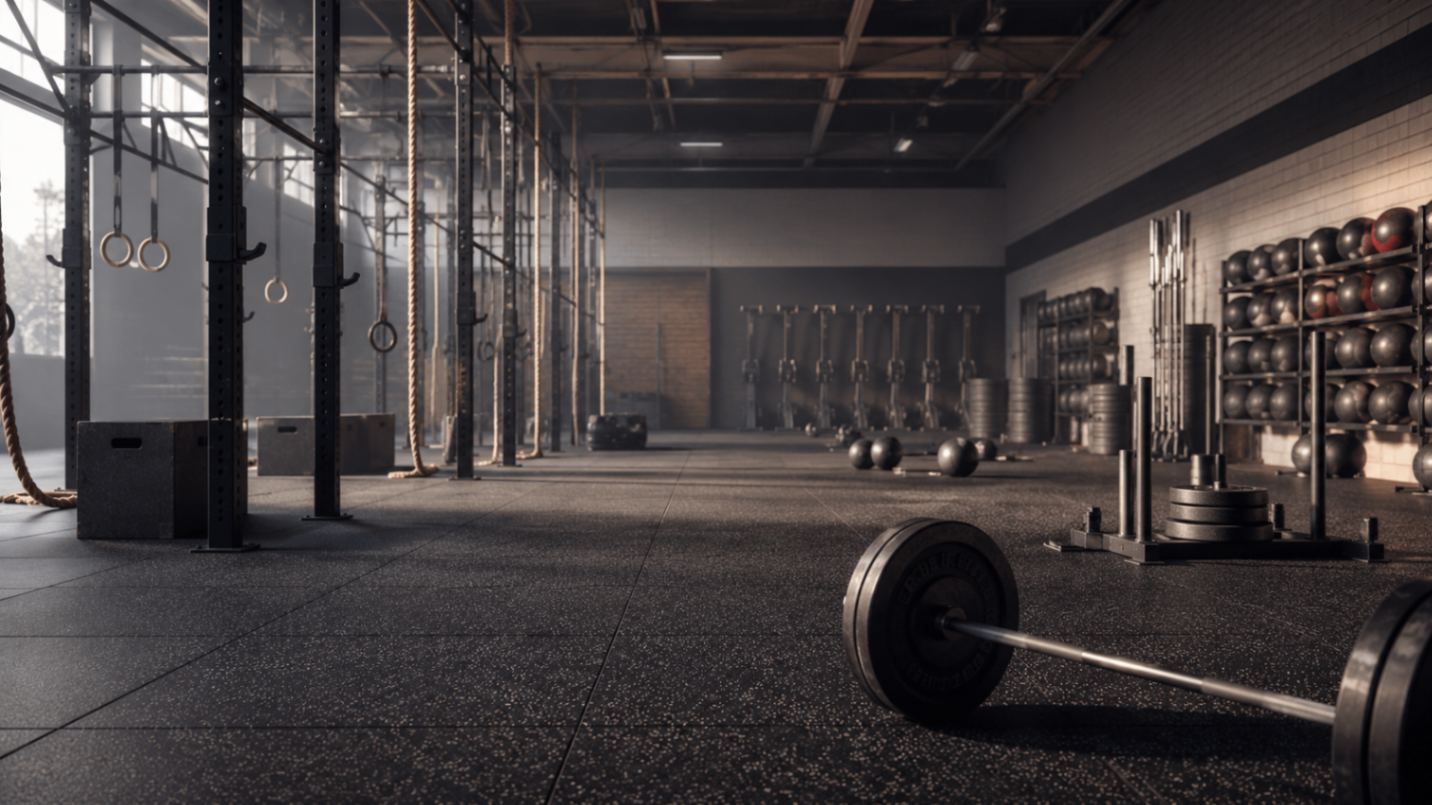

02CrossFit

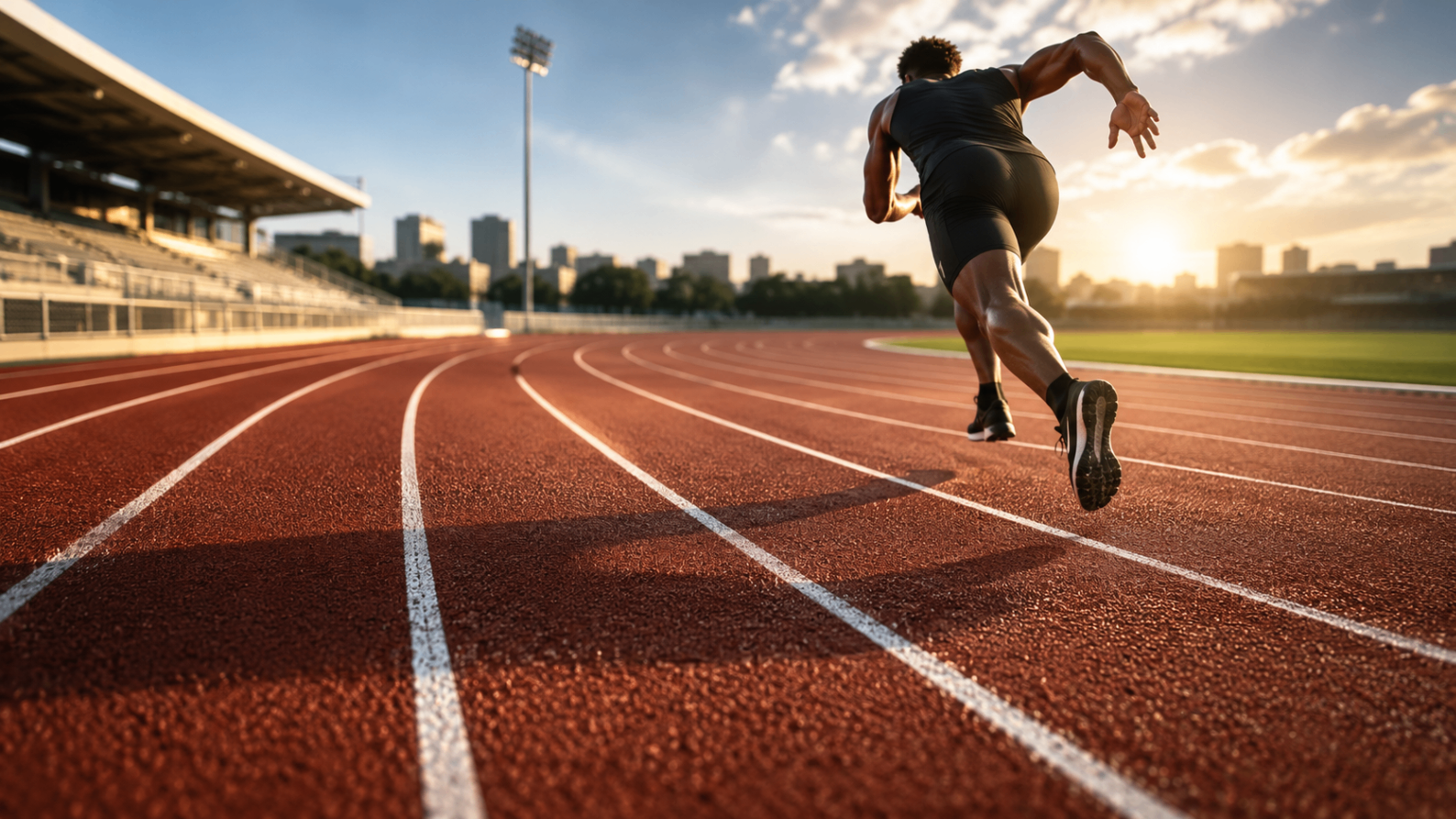

03Running Tracks

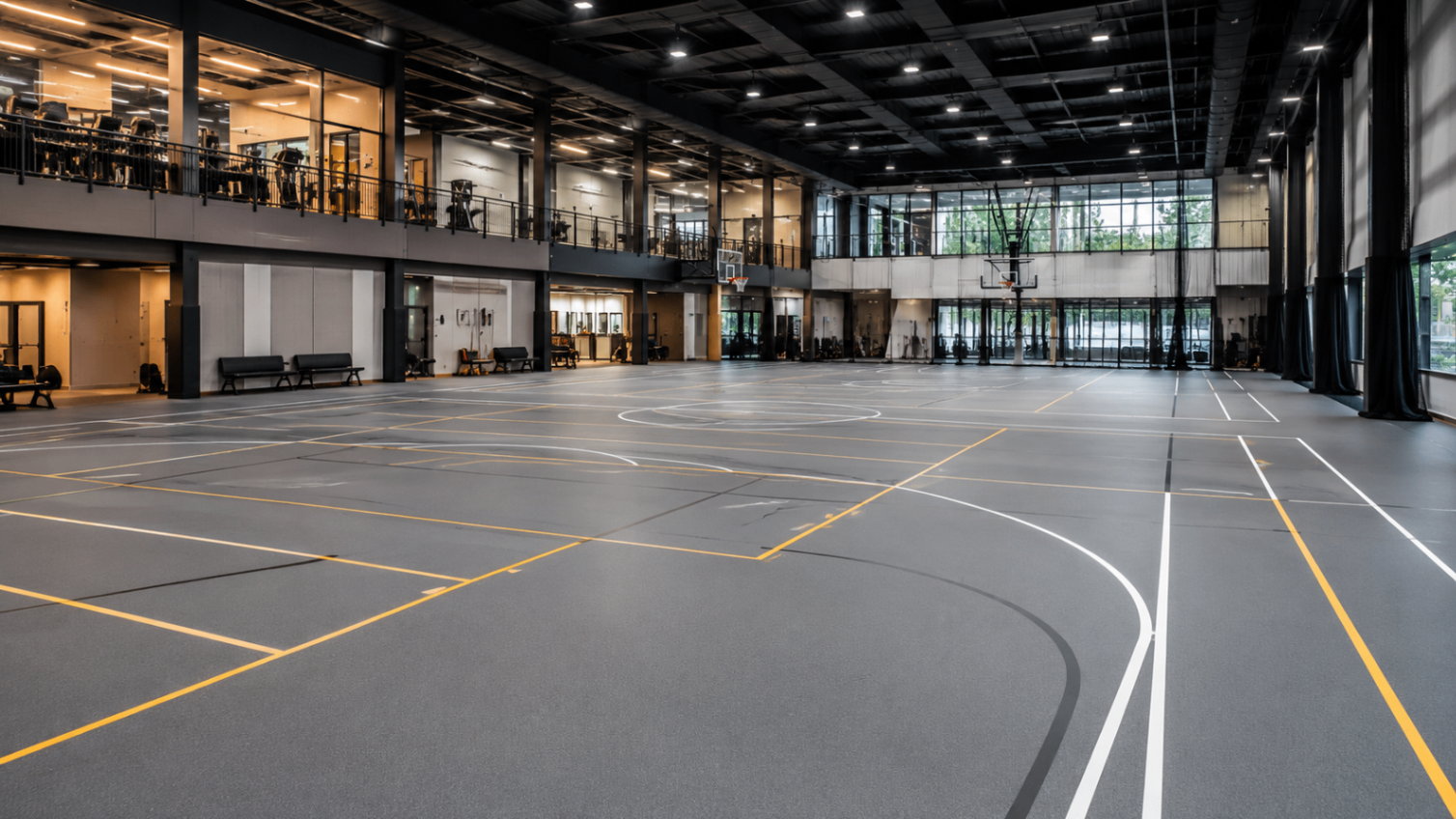

04Sports Facilities

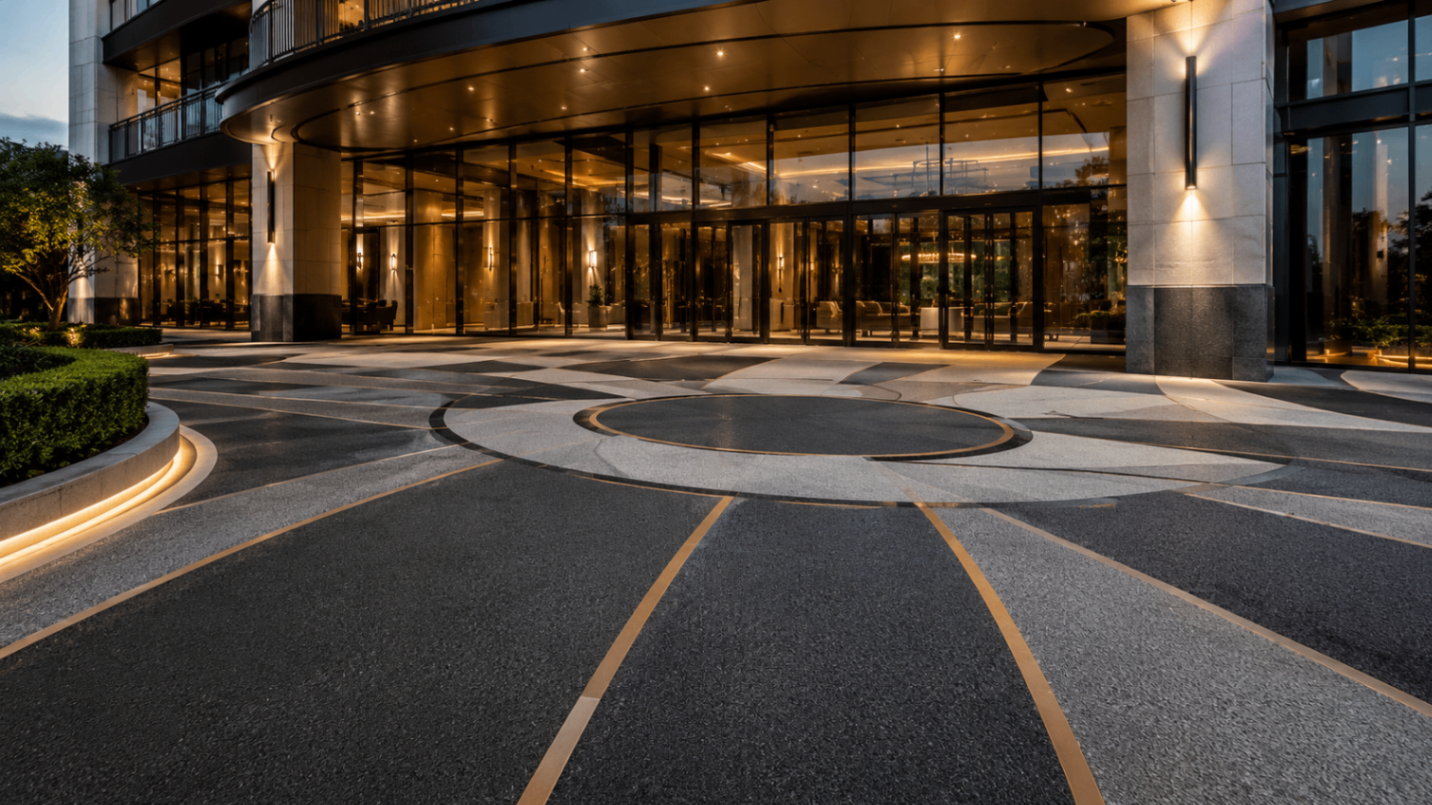

Architectural-grade inlays, brand-precise color, and refined finishes co-engineered for hospitality, corporate, and luxury commercial environments.
Spec GroundVex EliteEnvironments

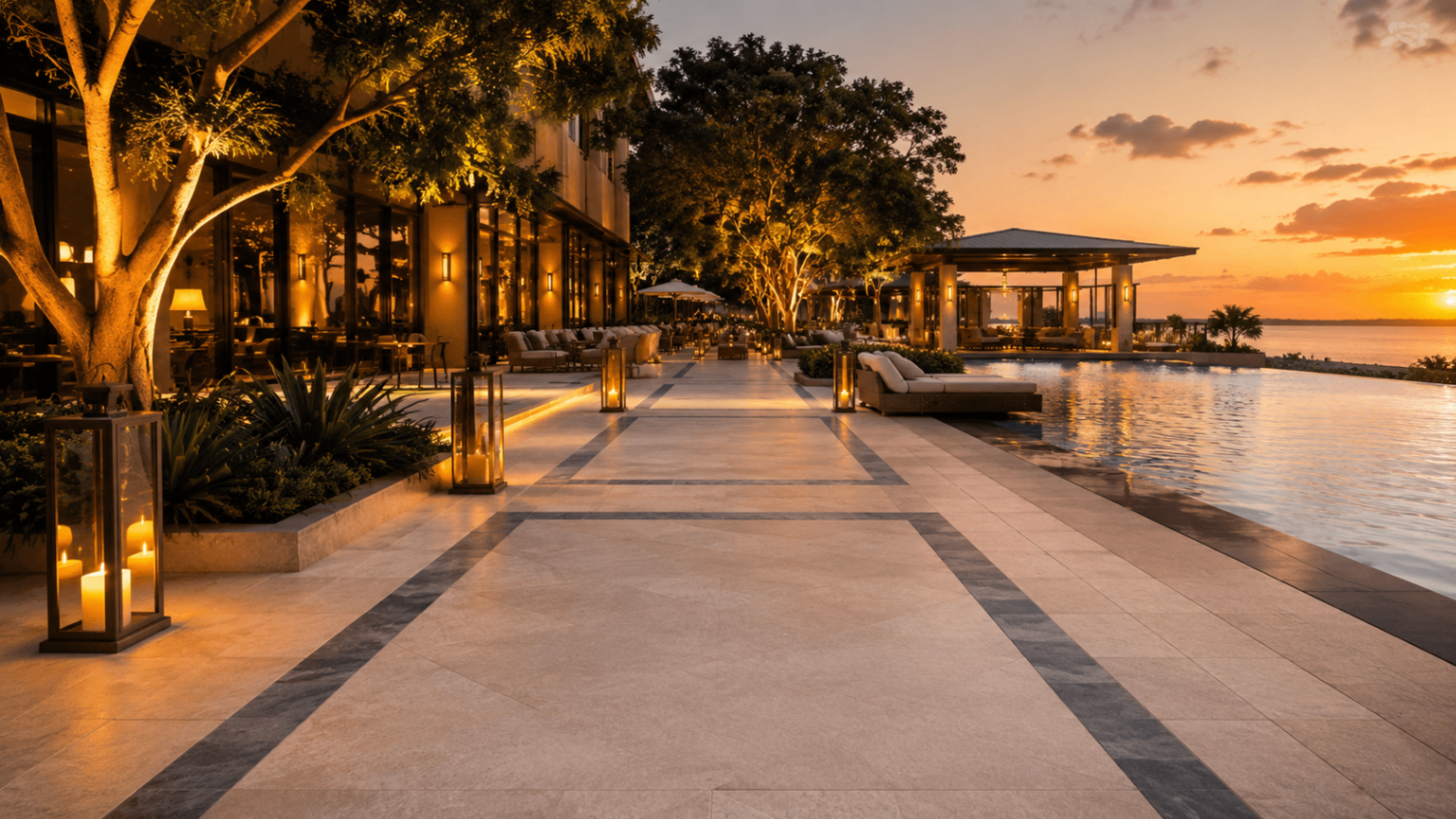

01Luxury Commercial
02Hospitality

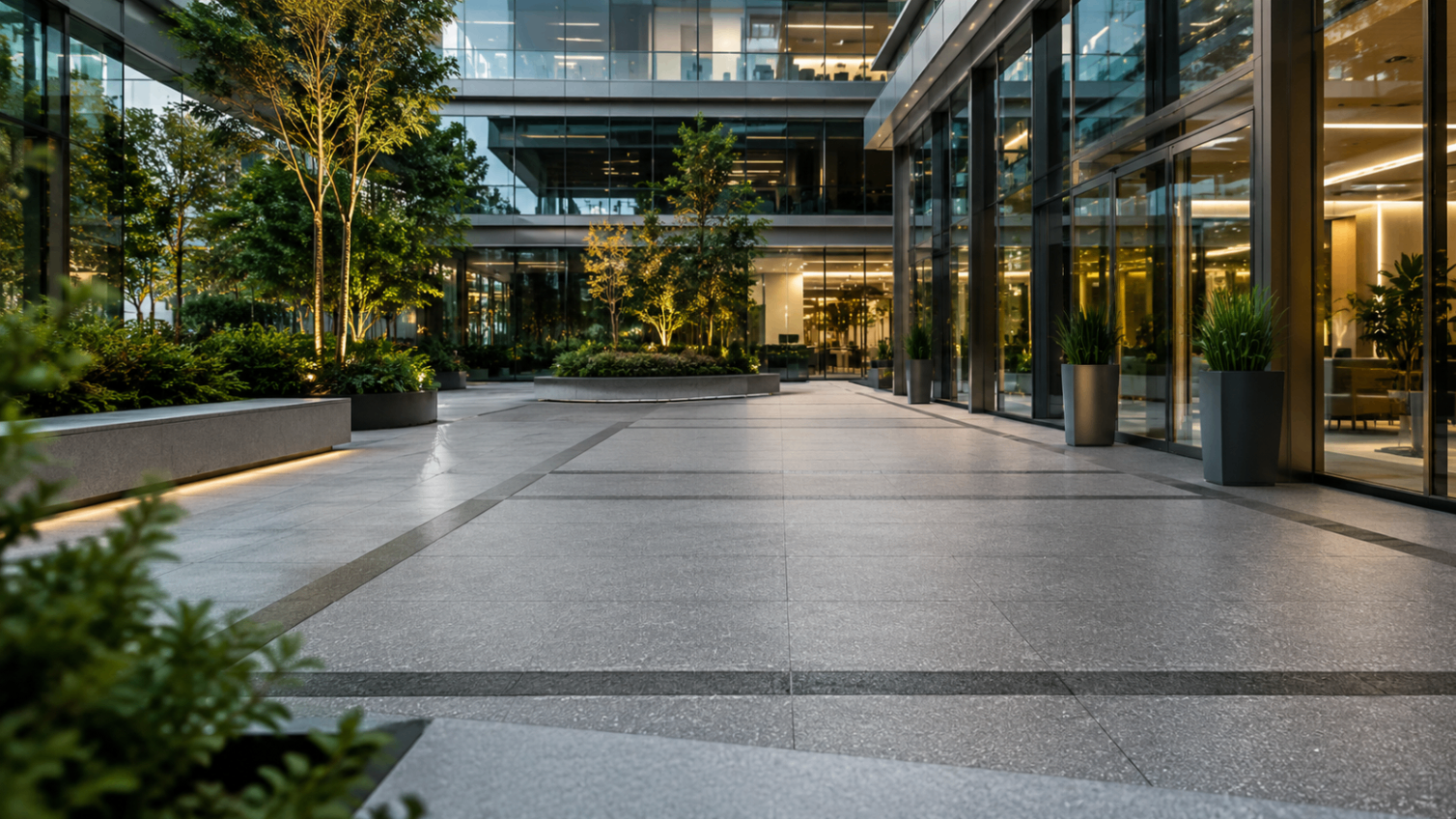

03Corporate

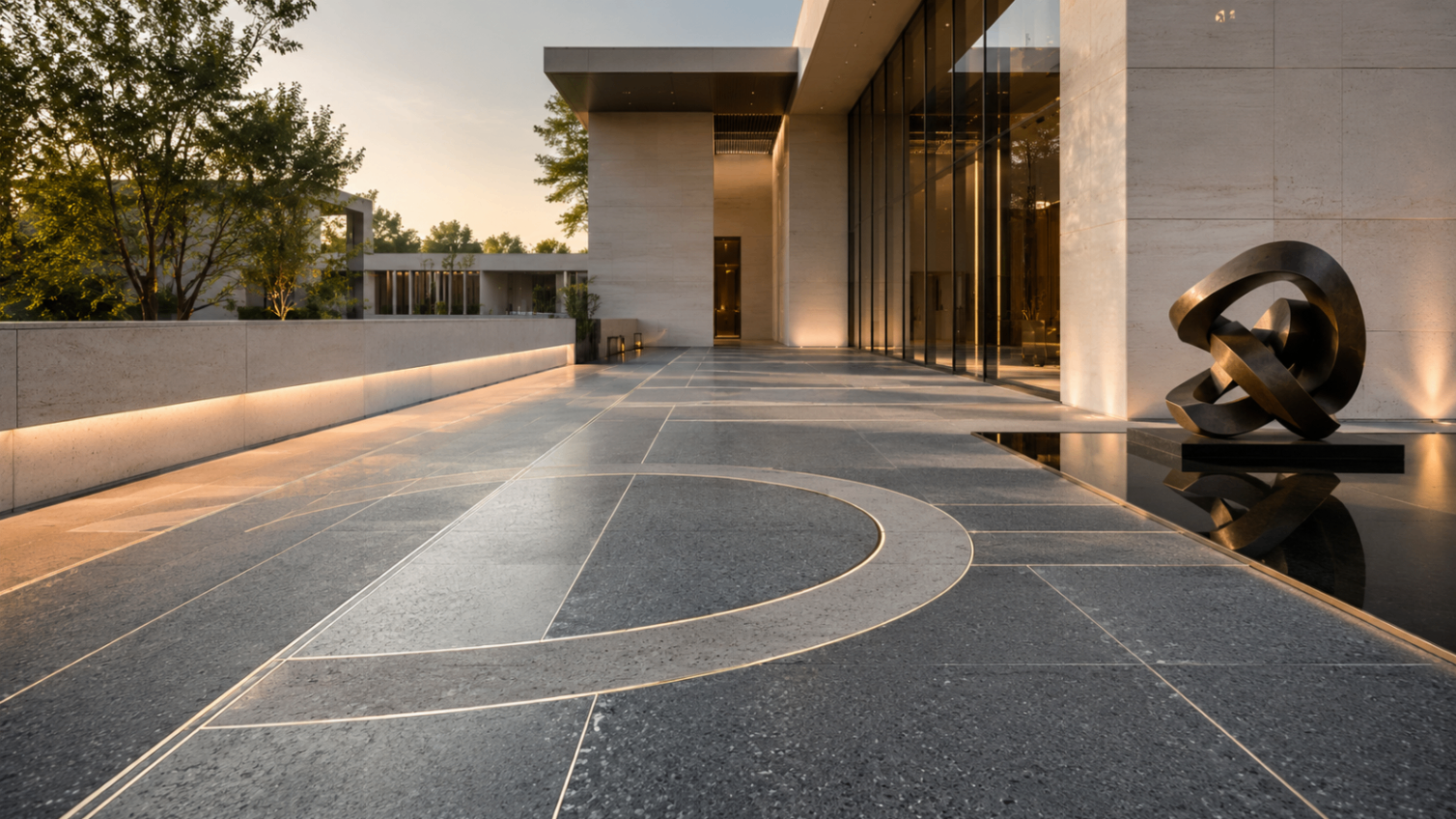

04Architectural Projects

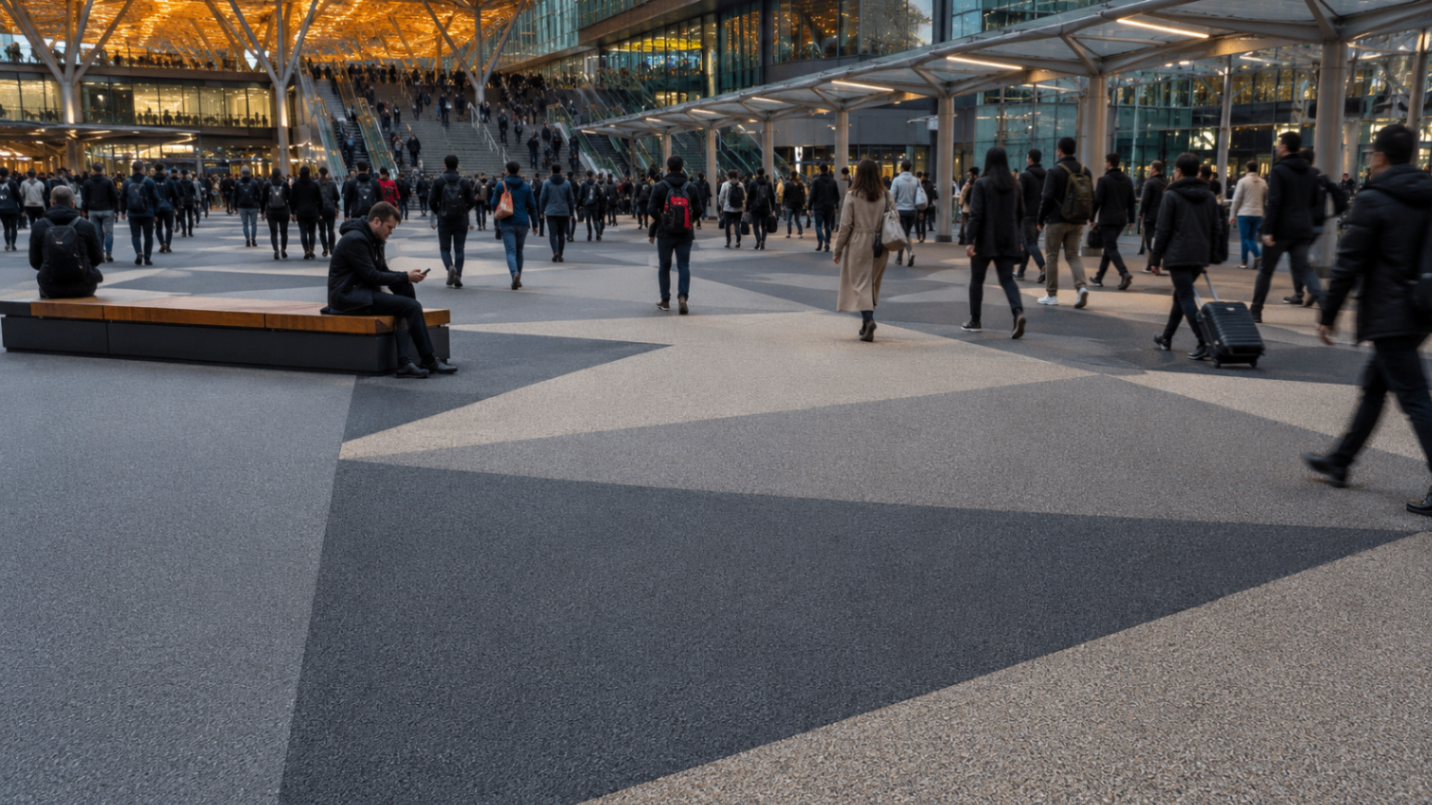

Heavy-duty, high-traffic surfacing engineered for civic-scale wear — municipal plazas, industrial recreation, and the largest public spaces.
Spec GroundVex UltraEnvironments
01Heavy Traffic

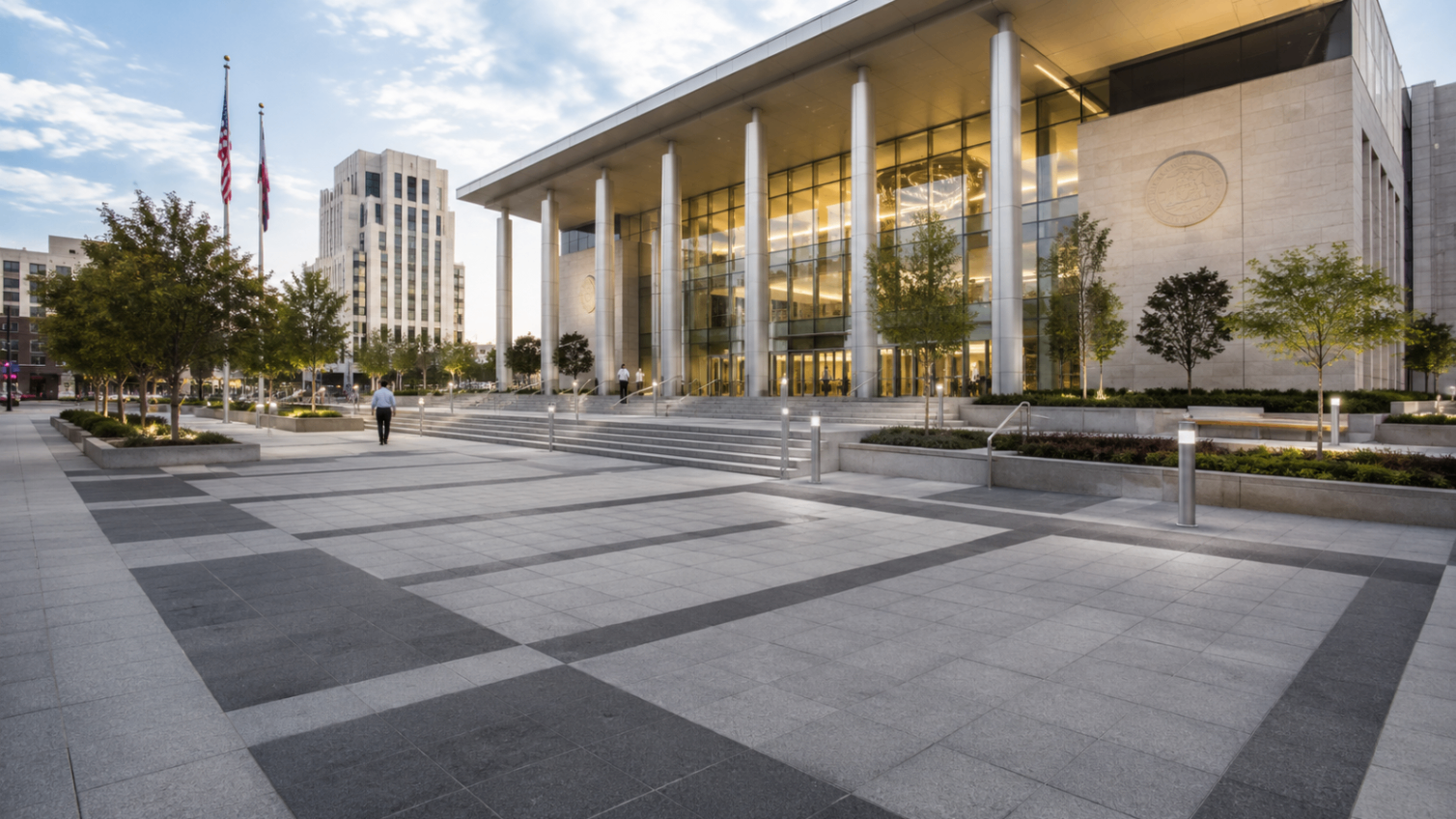

02Municipal

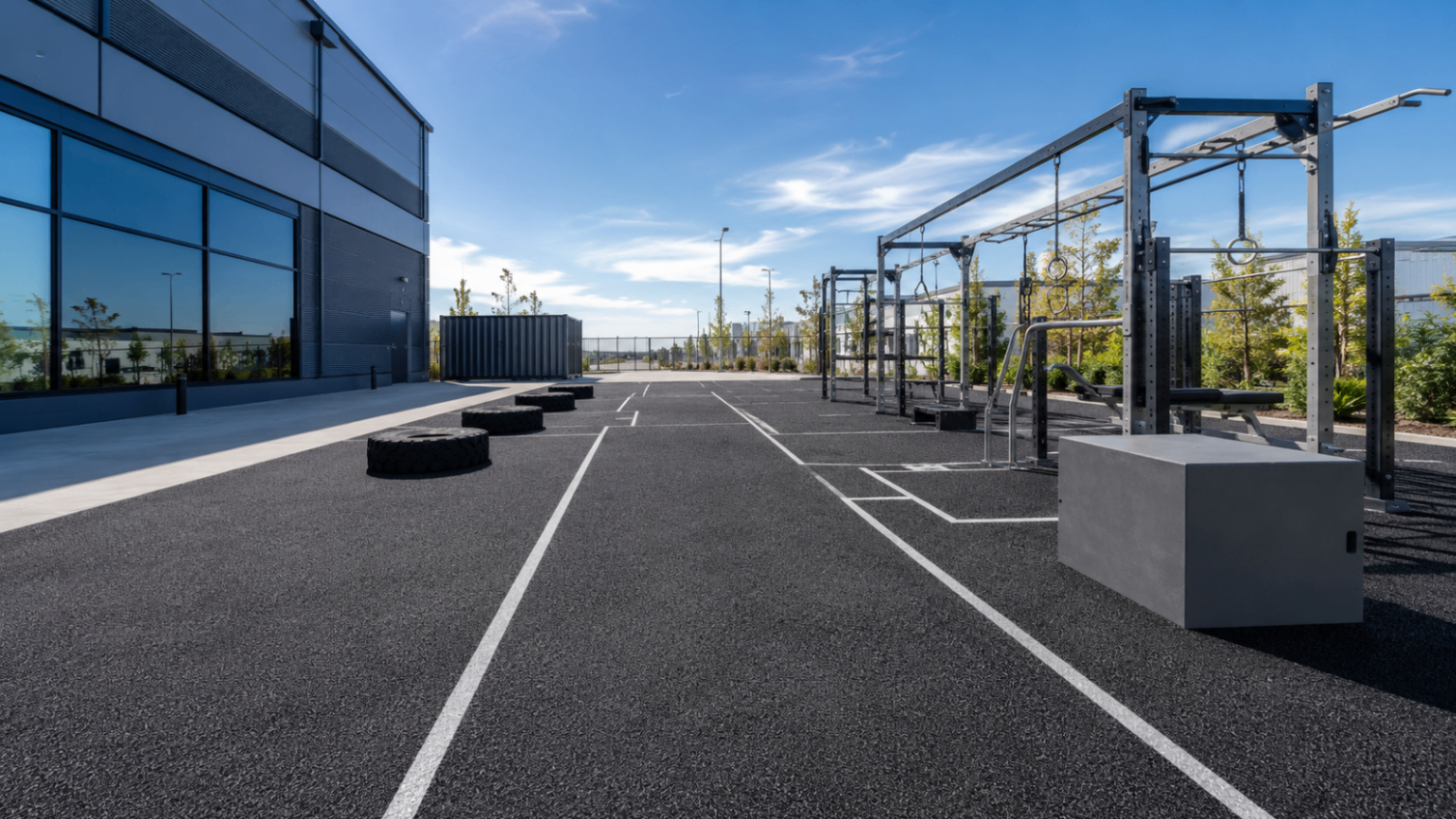

03Industrial Recreation

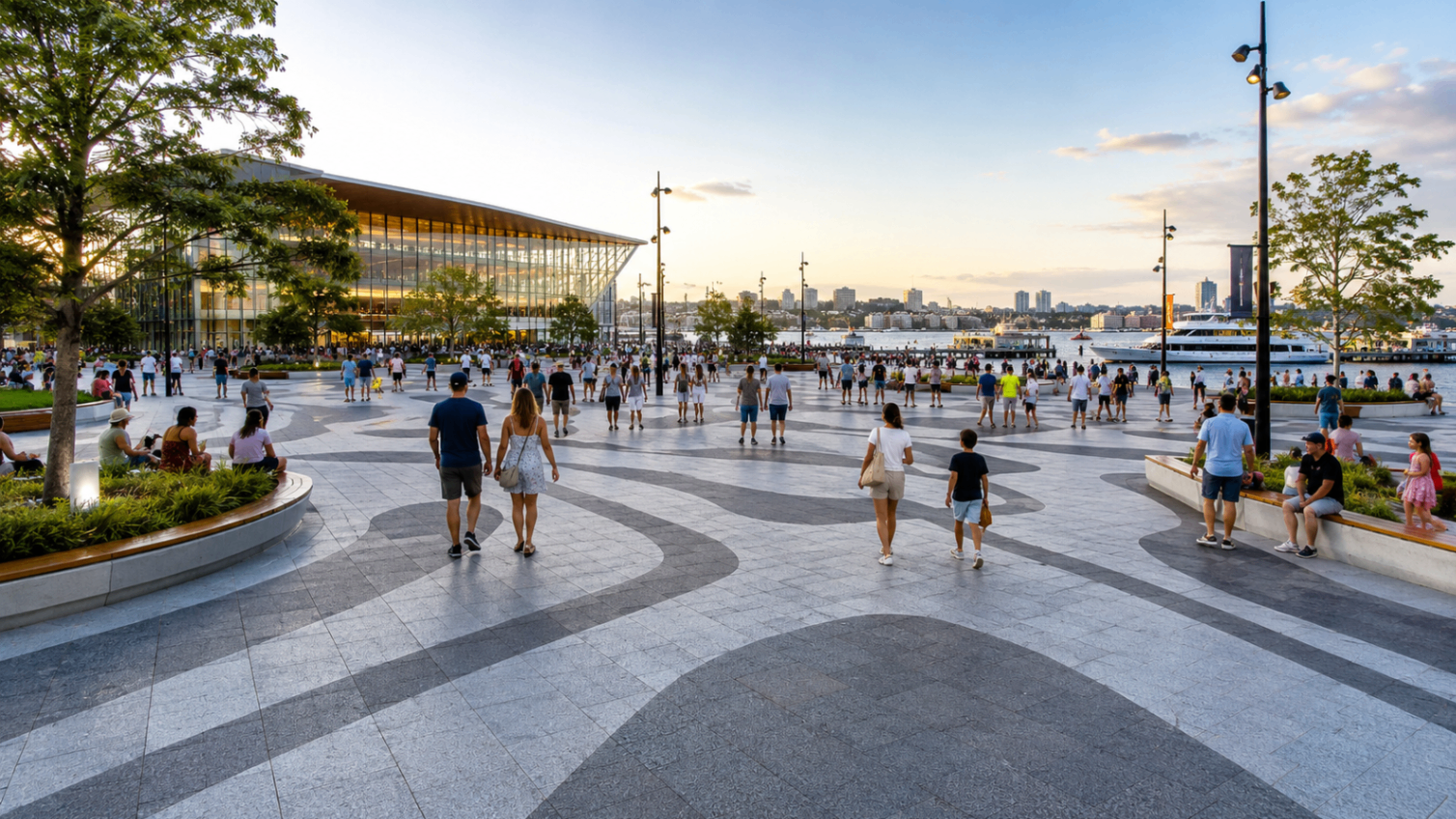

04Large Public Spaces
Recycled-content EPDM systems engineered for sustainability-first specs — low-VOC binders, LEED-contributing materials, and full end-of-life traceability.
Spec GroundVex EcoEnvironments

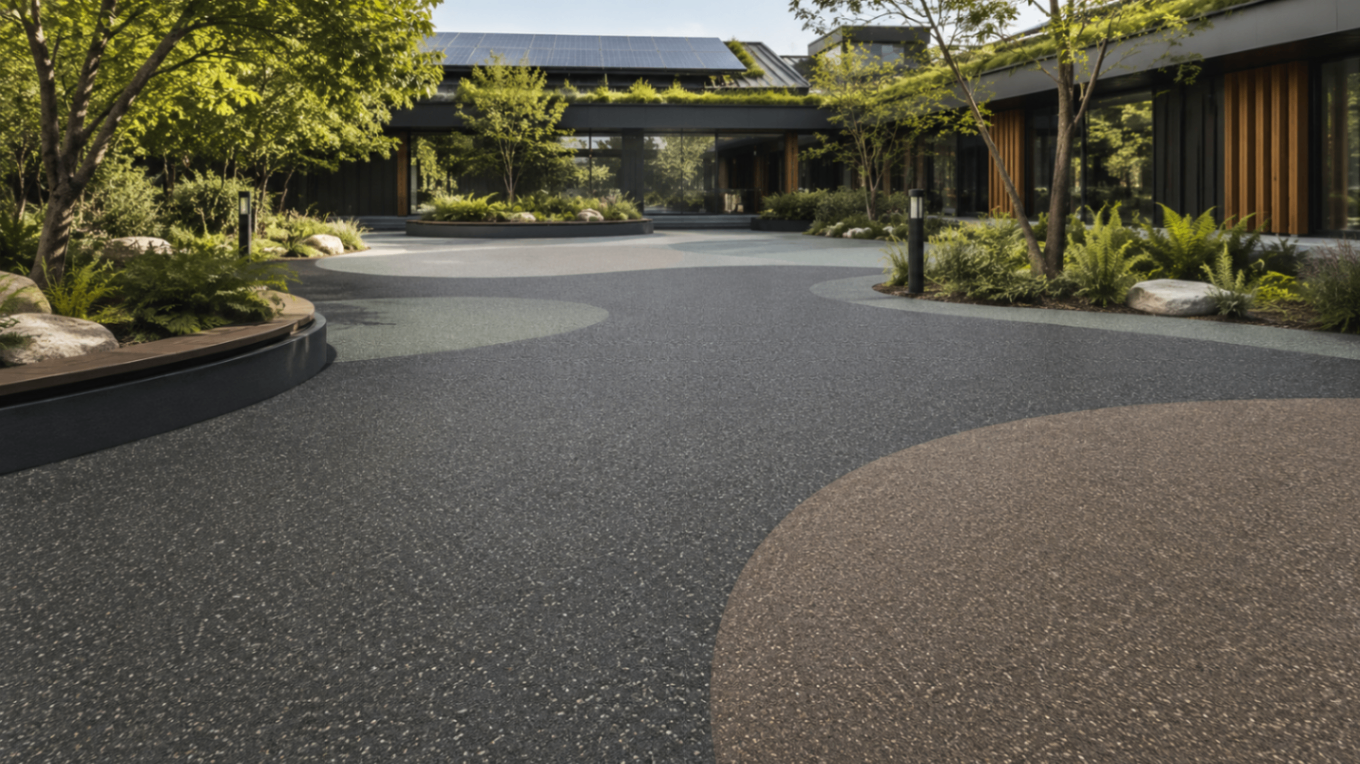

01Sustainability

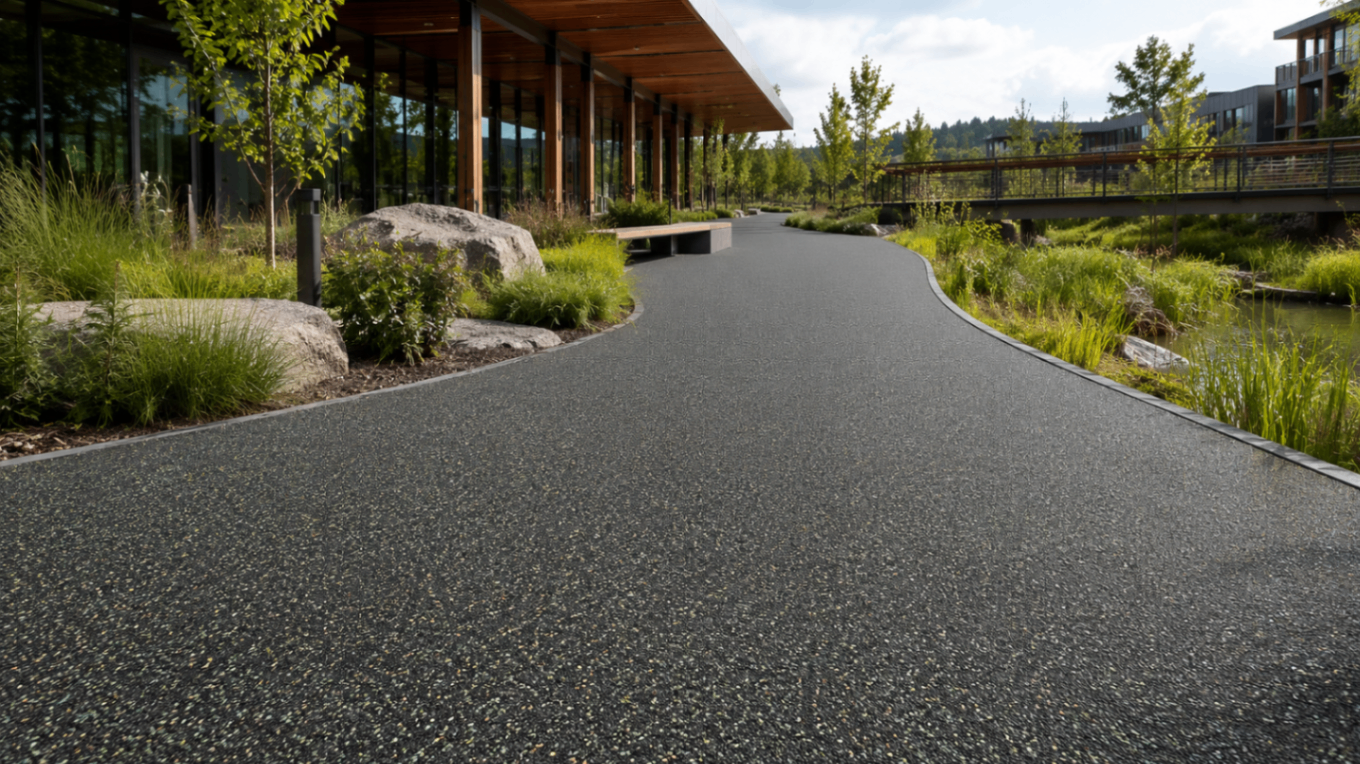

02LEED Projects

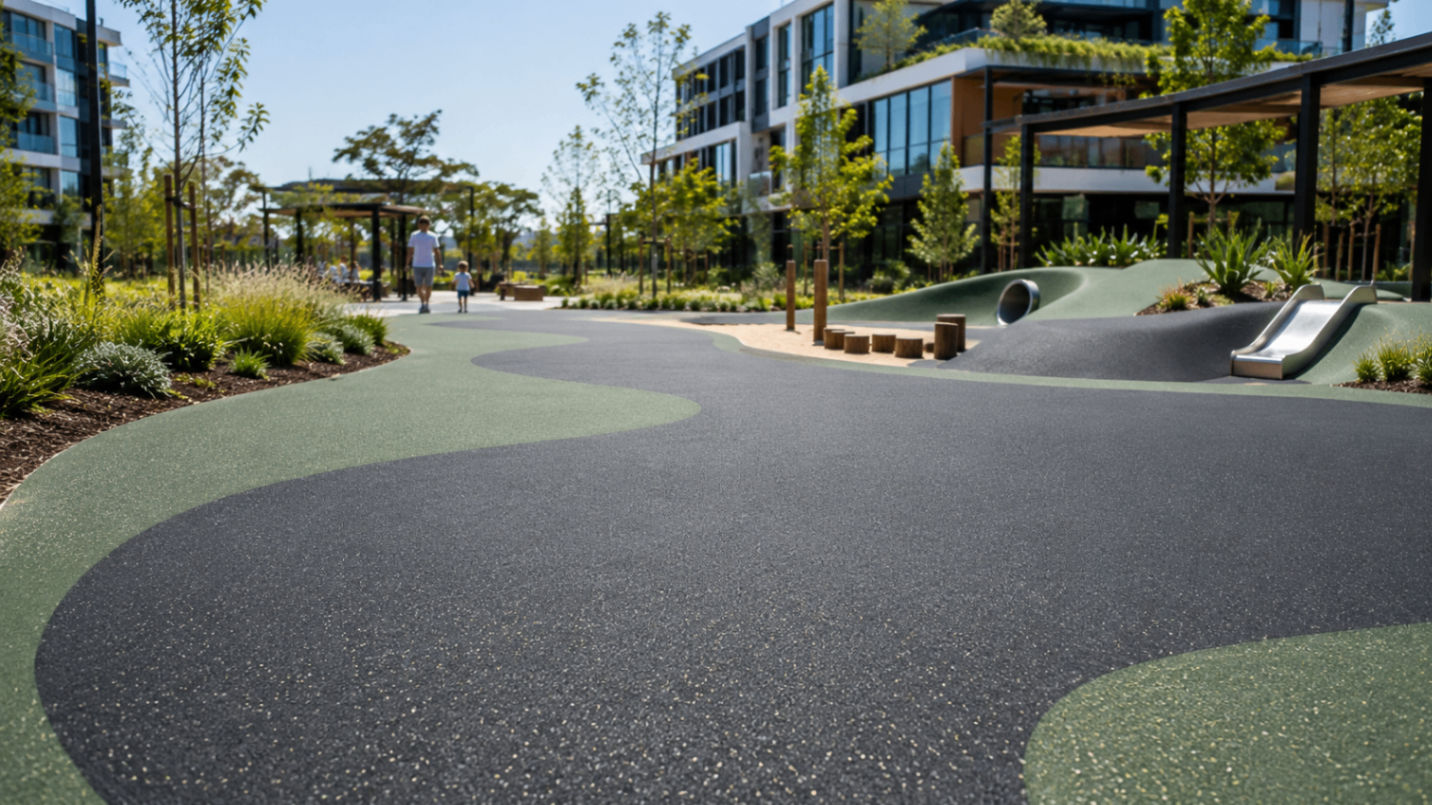

03Environmentally Focused Developments
